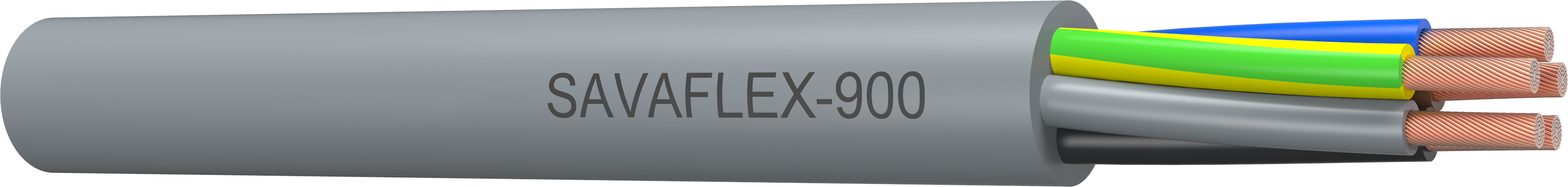

SAVAFLEX-900
PVC/PVC 전원 및 제어용 케이블 (색상식별)
구조
  • 도체 : 5등급 집합선
  • 절연 : PVC
  • 선심식별 : VDE 0293 참조.
  • 연합 : 필요한 선심수를 연합
  • 시스(자켓) : PVC
  • 케이블색상 : Grey (RAL 7001)
VIEW MORE
적용 및 특성
  • Control and connectrion cable (선심 식별 : 색상)
  • 서비스 캐비닛 및 제어 장치 건설, 전기 기술, 설치 및 포장 기술
  • 섬유 기계 건설, 목공 기계 및 공작 기계, 플랜트 엔지니어링 적용
  • 인장하중 없이 자유롭고 비연속적으로 반복적인 고정 설치 공간
VIEW MORE
제품인증 및 적용표준
Reference standard : EN 50525-1
기술사양
사용전압 1.5㎟↓: 300/500V / 2.5㎟↑: 450/750V
시험전압 4,000V/5min.
곡률반경 5 x D (고정설치시)
사용온도 -40℃ ~ 70℃ (고정설치시)
난연등급 IEC 60332-1-2. IEC 60332-3-24
VIEW MORE
제품번호 선심수x도체단면적
(No.x㎟)
소선경(최대)
(㎜)
외경(공칭)
(㎜)
도체소요량(약)
(㎏/㎞)
케이블소요량(약)
(㎏/㎞)
11090205 2 x 0.5 0.21 4.9 9.1 35.2
11090305 3 x 0.5 0.21 5.4 13.7 45.0
11090405 4 x 0.5 0.21 5.9 18.2 55.3
11090505 5 x 0.5 0.21 6.4 22.8 66.2
11090705 7 x 0.5 0.21 7.1 31.9 83.0
11091005 10 x 0.5 0.21 9.0 45.6 118.6
11091205 12 x 0.5 0.21 9.3 54.7 135.3
11091505 15 x 0.5 0.21 10.5 68.4 168.6
11091805 18 x 0.5 0.21 11.0 82.1 195.6
11092105 21 x 0.5 0.21 11.8 95.7 227.1
11092405 24 x 0.5 0.21 13.1 109.4 262.8
11092505 25 x 0.5 0.21 13.1 114.0 270.7
11093005 30 x 0.5 0.21 13.9 136.8 315.0
11093205 32 x 0.5 0.21 14.6 145.9 340.3
11093405 34 x 0.5 0.21 15.1 155.0 359.2
11093605 36 x 0.5 0.21 15.1 164.1 374.9
11090207 2 x 0.75 0.21 5.5 13.1 45.6
11090307 3 x 0.75 0.21 5.9 19.7 56.3
11090407 4 x 0.75 0.21 6.4 26.2 68.8
11090507 5 x 0.75 0.21 7.1 32.8 85.1
11090707 7 x 0.75 0.21 7.7 45.9 104.2
11091007 10 x 0.75 0.21 10.0 65.5 153.6
11091207 12 x 0.75 0.21 10.4 78.6 176.0
11091507 15 x 0.75 0.21 11.6 98.3 218.0
11091807 18 x 0.75 0.21 12.2 117.9 253.8
11092107 21 x 0.75 0.21 13.0 137.6 293.8
11092407 24 x 0.75 0.21 14.5 157.3 339.7
11092507 25 x 0.75 0.21 14.5 163.8 350.2
11093007 30 x 0.75 0.21 15.6 196.6 415.5
11093207 32 x 0.75 0.21 16.1 209.7 439.8
11093407 34 x 0.75 0.21 16.7 222.8 464.8
11093607 36 x 0.75 0.21 16.7 235.9 485.7
11090210 2 x 1.0 0.21 5.8 17.7 53.1
11090310 3 x 1.0 0.21 6.2 26.5 65.9
11090410 4 x 1.0 0.21 6.9 35.3 83.7
11090510 5 x 1.0 0.21 7.5 44.2 100.9
11090710 7 x 1.0 0.21 8.3 61.8 128.4
11091010 10 x 1.0 0.21 10.6 88.3 183.3
11091210 12 x 1.0 0.21 11.0 106.0 210.8
11091510 15 x 1.0 0.21 12.3 132.5 261.5
11091810 18 x 1.0 0.21 13.1 159.0 311.3
11092110 21 x 1.0 0.21 13.8 185.5 353.9
11092410 24 x 1.0 0.21 15.6 212.0 415.8
11092510 25 x 1.0 0.21 15.6 220.8 428.9
11093010 30 x 1.0 0.21 16.5 265.0 500.6
11093210 32 x 1.0 0.21 17.3 282.6 538.7
11093410 34 x 1.0 0.21 17.9 300.3 569.1
11093610 36 x 1.0 0.21 17.9 317.9 595.2
11090215 2 x 1.5 0.26 6.4 24.9 67.4
11090315 3 x 1.5 0.26 7.0 37.4 86.8
11090415 4 x 1.5 0.26 7.7 49.9 108.8
11090515 5 x 1.5 0.26 8.5 62.3 133.9
11090715 7 x 1.5 0.26 9.2 87.3 166.5
11091015 10 x 1.5 0.26 12.0 124.6 243.4
11091215 12 x 1.5 0.26 12.4 149.6 280.3
11091515 15 x 1.5 0.26 14.1 187.0 354.1
11091815 18 x 1.5 0.26 14.8 224.4 413.6
11092115 21 x 1.5 0.26 15.8 261.8 478.4
11092415 24 x 1.5 0.26 17.6 299.1 551.0
11092515 25 x 1.5 0.26 17.6 311.6 568.8
11093015 30 x 1.5 0.26 18.9 373.9 674.6
11093215 32 x 1.5 0.26 19.5 398.9 714.8
11093415 34 x 1.5 0.26 20.4 423.8 765.0
11093615 36 x 1.5 0.26 20.4 448.7 800.5
11090225 2 x 2.5 0.26 9.2 40.1 130.8
11090325 3 x 2.5 0.26 10.0 60.1 165.3
11090425 4 x 2.5 0.26 10.9 80.1 203.7
11090525 5 x 2.5 0.26 12.1 100.2 252.2
11090725 7 x 2.5 0.26 13.4 140.2 318.0
11091225 12 x 2.5 0.26 18.1 240.4 537.3
11091525 15 x 2.5 0.26 20.5 300.5 672.9
11091825 18 x 2.5 0.26 21.7 360.6 795.8
11090240 2 x 4 0.31 10.5 65.4 180.5
11090340 3 x 4 0.31 11.3 98.1 227.5
11090440 4 x 4 0.31 12.4 130.8 284.4
11090540 5 x 4 0.31 13.8 163.5 353.5
11090740 7 x 4 0.31 15.2 228.8 446.9
11091240 12 x 4 0.31 20.8 392.3 764.2
11091540 15 x 4 0.31 23.4 490.4 953.1
11091840 18 x 4 0.31 24.8 588.5 1,128.3
11090260 2 x 6 0.31 11.8 97.4 239.4
11090360 3 x 6 0.31 12.7 146.2 304.5
11090460 4 x 6 0.31 14.1 194.9 387.4
11090560 5 x 6 0.31 15.6 243.6 478.4
11090760 7 x 6 0.31 17.2 341.0 610.0
11091060 10 x 6 0.31 22.5 487.2 923.0
11092061 2 x 10 0.41 15.0 175.5 401.0
11090361 3 x 10 0.41 16.2 263.2 515.4
11090461 4 x 10 0.41 18.0 351.0 657.5
11090561 5 x 10 0.41 20.1 438.7 820.7
11090761 7 x 10 0.41 22.1 614.2 1,047.3
11091061 10 x 10 0.41 29.2 877.5 1,600.7
11090262 2 x 16 0.41 18.5 38.7 376.5
11090362 3 x 16 0.41 20.0 58.1 434.7
11090462 4 x 16 0.41 22.1 77.5 528.1
11090562 5 x 16 0.41 24.6 96.9 654.0
11090762 7 x 16 0.41 27.3 135.6 776.0
11090263 2 x 25 0.41 22.2 59.3 543.2
11090363 3 x 25 0.41 23.9 88.9 622.2
11090463 4 x 25 0.41 26.6 118.5 767.6
11090563 5 x 25 0.41 29.6 148.1 949.9
11090763 7 x 25 0.41 33.0 207.4 1,136.7
11090264 2 x 35 0.41 26.2 84.3 740.5
11090364 3 x 35 0.41 28.1 126.5 835.5
11090464 4 x 35 0.41 31.6 168.7 1,051.8
11090564 5 x 35 0.41 35.0 210.8 1,288.1
11090764 7 x 35 0.41 38.9 295.2 1,523.6
